Provide professional and perfect sign solutions
Stable, efficient and cost-effective

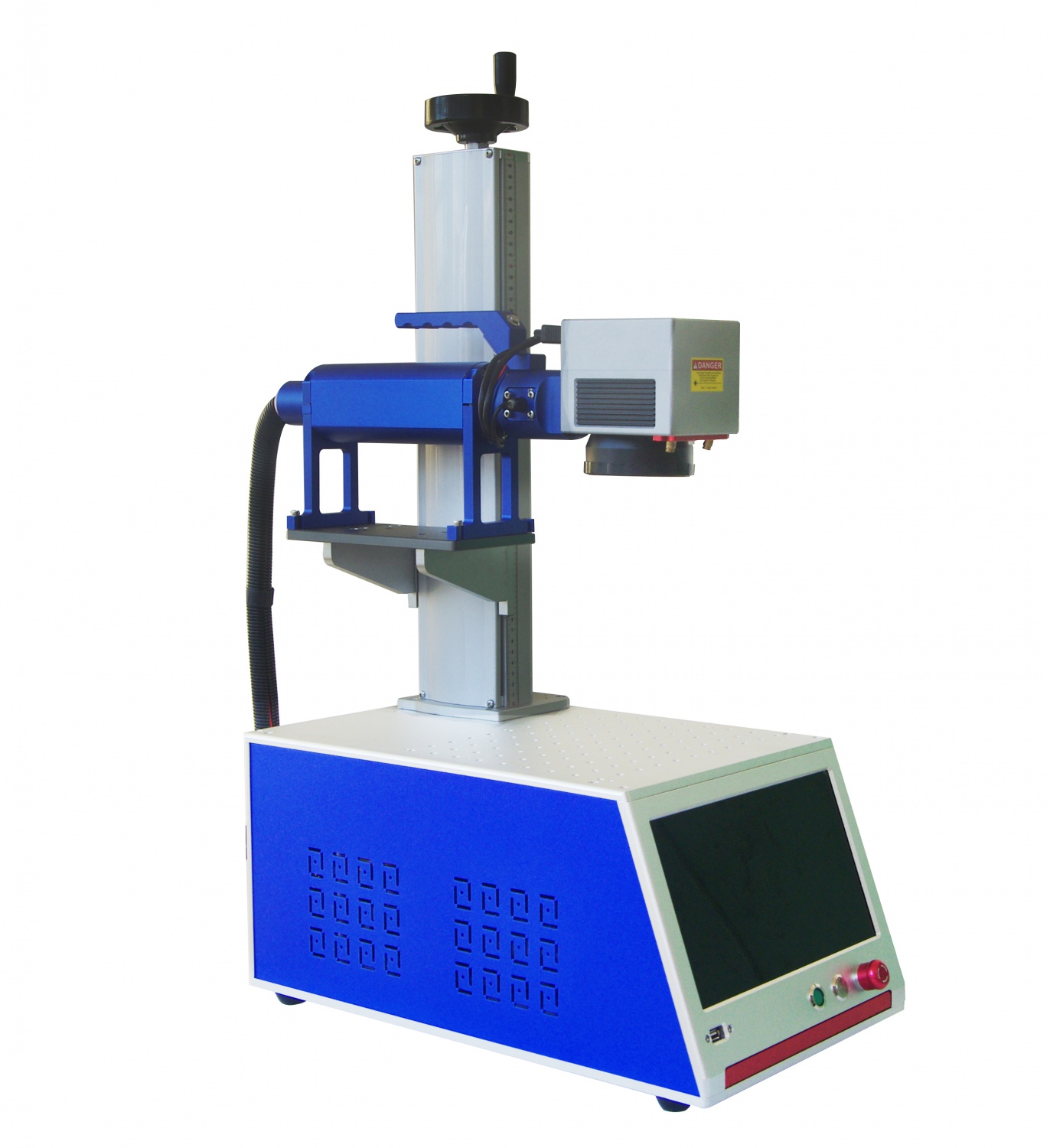

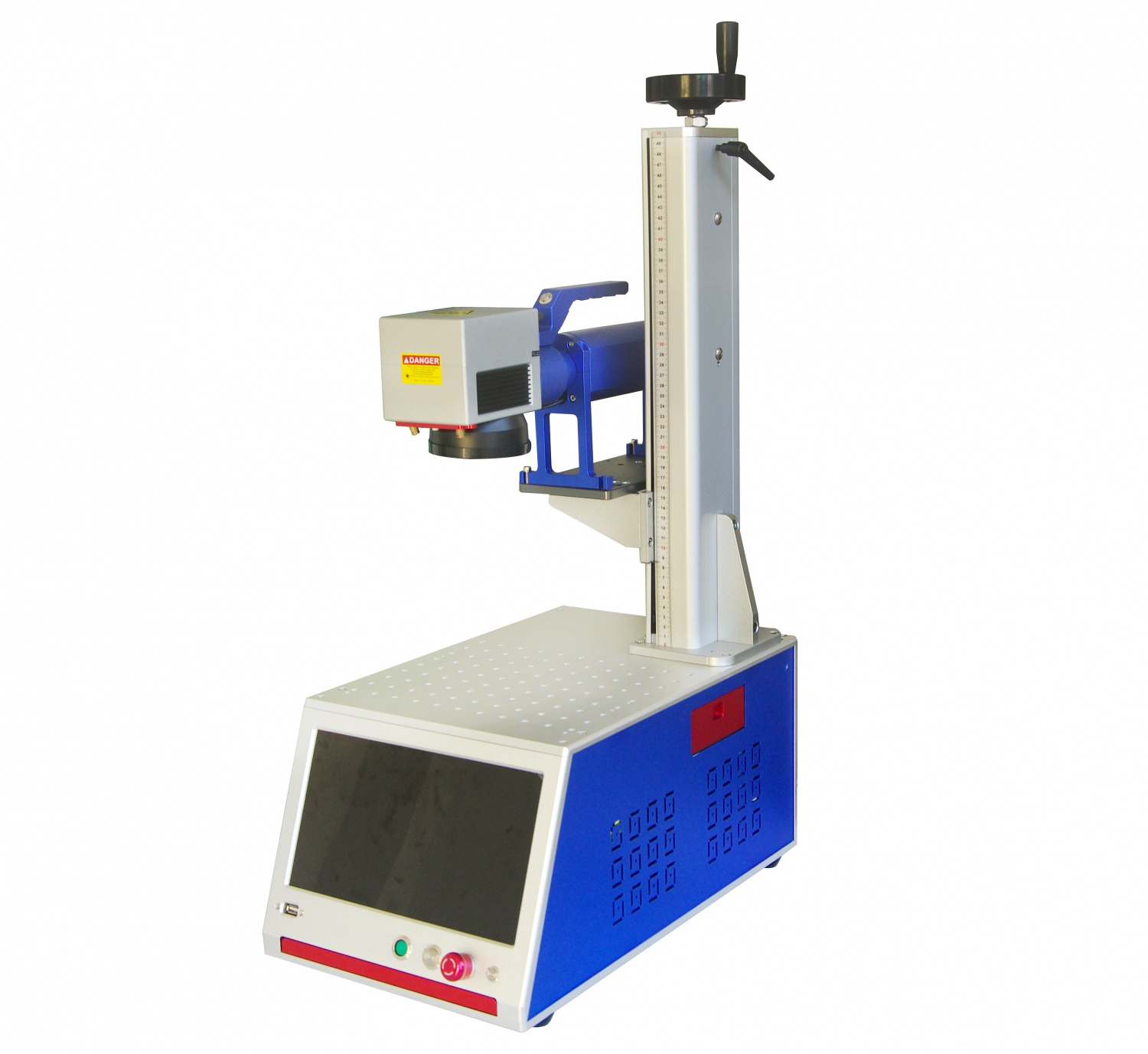

●技术参数
机器型号 | FS201 | FS301 |
激光输出功率 | 20W | 30W |
激光中心波长 | 1064nm | |
打标速度 | 8000mm/s | |
输入电源 | 220V；50/60Hz | |
打标范围 | 70mm*70mm、110mm*110mm、150mm*150mm等可选 | |
最小线宽 | 0.11mm | |
最小字高 | 0.9mm | |
机器材质 | 全铝结构 | |
用户字体 | 多种字体支持 | |
印章内容 | 数字、汉字、英文、图标、符号、条形码、二维码等 | |
冷却系统 | 风冷 | |
适用材质 | 纸、各种塑料产品、陶瓷、玻璃、木材、有涂层金属等 | |
机器尺寸 | 510mm*655mm*1420mm | |
外部工作环境 | 10℃（50℉）至40℃（104℉）；湿度≤95%非冷凝；无振动 | |
●打标样品
